Circuit Plan

1. Overview​

The circuit plan module uses intelligent automatic control strategies to achieve fine control of terminal power supply. Support is based on the following trigger conditions:

  • Time triggering: Timing control down to the minute level
  • Latitude and longitude trigger: Dynamically adjusts based on sunrise/sunset times

It is suitable for various scenarios that require fine control of the terminal power supply.

Definition
  1. The circuit plan platform side is responsible for the creation, editing, deletion, activation, and deactivation of plans.
  2. All enabled plans will be automatically sent and synchronized to related edge-side control devices (gateways).
  3. Edge-side control devices (gateways) execute based on the plan configuration.

2. Function Introduction​

2.1 Plan List​

The list displays all circuit plans added by users under the current domain and subdomains.

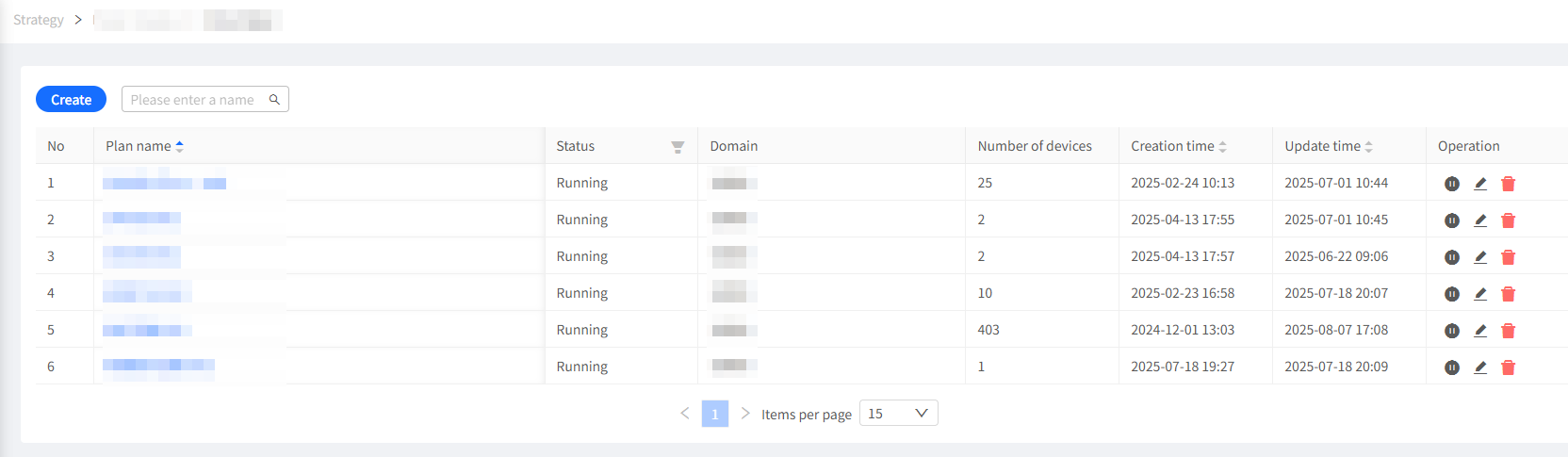

Plan List

2.1.1 Operation Steps​

  1. Login to the system and select the Smart Strategy module in the system menu to enter.
  2. In the left menu item, click Circuit Plan to enter the plan list.

2.1.2 Interface Description​

  • Pagination: Displays all plans (default sorted by plan name in ascending order)
  • Quick Search: Supports fuzzy query by plan name
  • Status Filter: Enables/Disables plans
  • List Display:
    • Plan Name: Supports editing
    • Status: Current plan status (enabled/disabled), supports filtering by status
    • Domain: Domain to which the plan belongs
    • Device Count: Number of pole power terminal devices associated with the plan
    • Create Time: Display the creation time of the plan, supports sorting by time
    • Update Time: Display the last update time of the plan configuration, supports sorting by time
    • Quick Operations: Display the executable operation instructions for the current plan
      • Rename: Edit the plan name
      • Delete：Delete the current plan
      • Enable：Enable the current plan
      • Disable：Disable the current plan

2.2 New Plan​

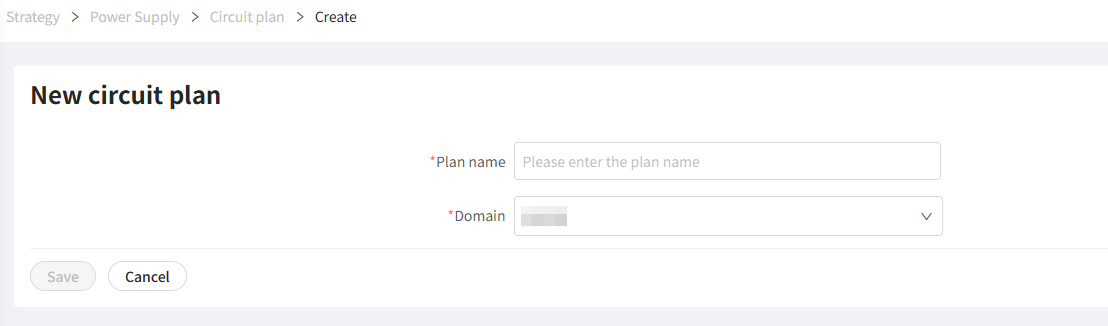

New Plan

2.2.1 Operation Steps​

  1. Login to the system and select the Smart Strategy module in the system menu to enter.
  2. In the left menu item, click Circuit Plan to enter the plan list.
  3. Click the "Create" button in the upper left corner of the page, enter the creation page.
  4. Follow the page prompts to complete the plan name and domain selection, click the "Save" button, enter the plan details page.

2.3 Plan Details​

This section is used to view the current plan execution configuration and preview effects.

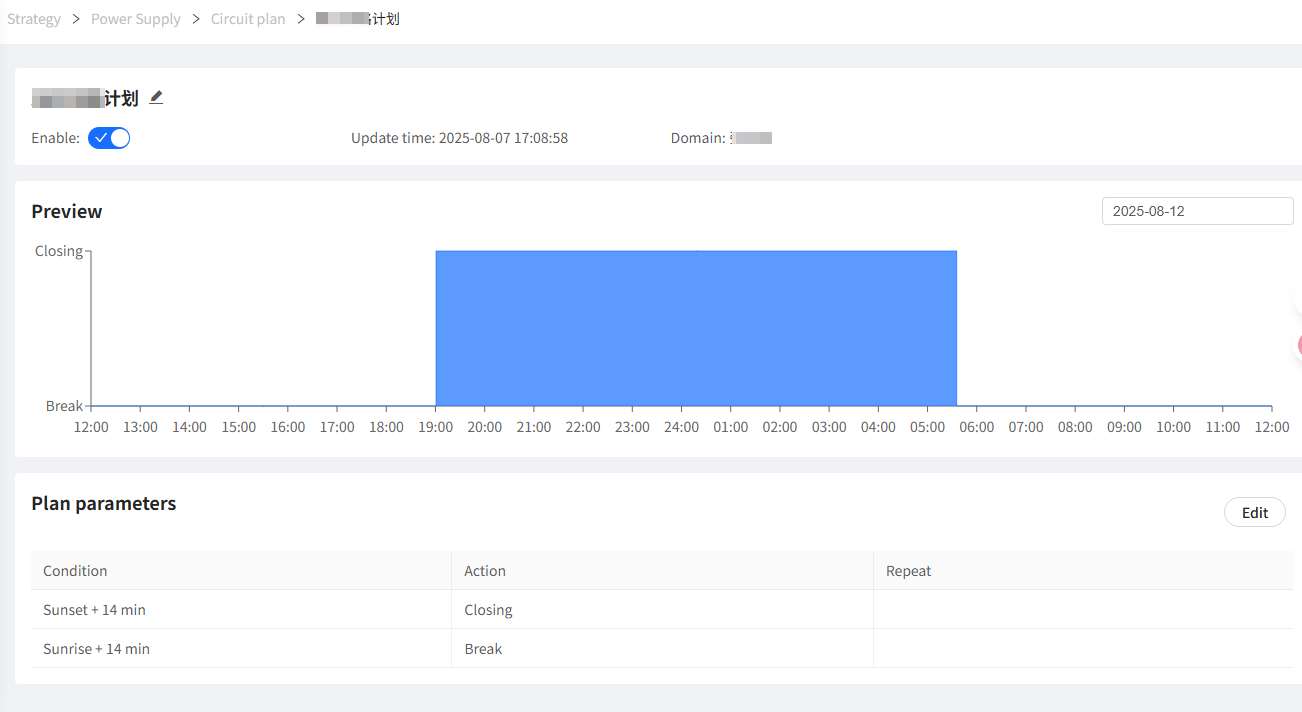

Plan Details

2.3.1 Interface Description​

  1. Basic Information Area
    • Plan Name: Supports editing
    • Status: Current plan status (enabled/disabled), supports filtering by status
    • Domain: Domain to which the plan belongs
    • Update Time: Display the last update time of the plan configuration, supports sorting by time
  2. Preview Area: Chart displays the status (On/Off) change of circuit terminal devices on the specified date
    • Y-axis: Circuit status
    • X-axis: Time, displaying the period from noon to noon of the next day
    • Supports date switching
  3. Plan Parameter Area: List displays multiple execution parameters in the current plan
    • Trigger Conditions: Specific time for plan execution, supports timing and astronomical time based on latitude and longitude (offset adjustable)
    • Instruction Parameters: Circuit execution instruction, disconnect or connect
    • Execution Cycle: Plan execution cycle, default is all dates are effective, supports user-defined month, date, week execution at a certain time point
Definition
  1. The plan parameters based on astronomical time, such as sunrise and sunset, will automatically calculate based on the latitude and longitude coordinates of the plan's domain.

2.3.2 Operation Steps​

Click the "Edit" button in the plan parameter area to enter the plan edit state.

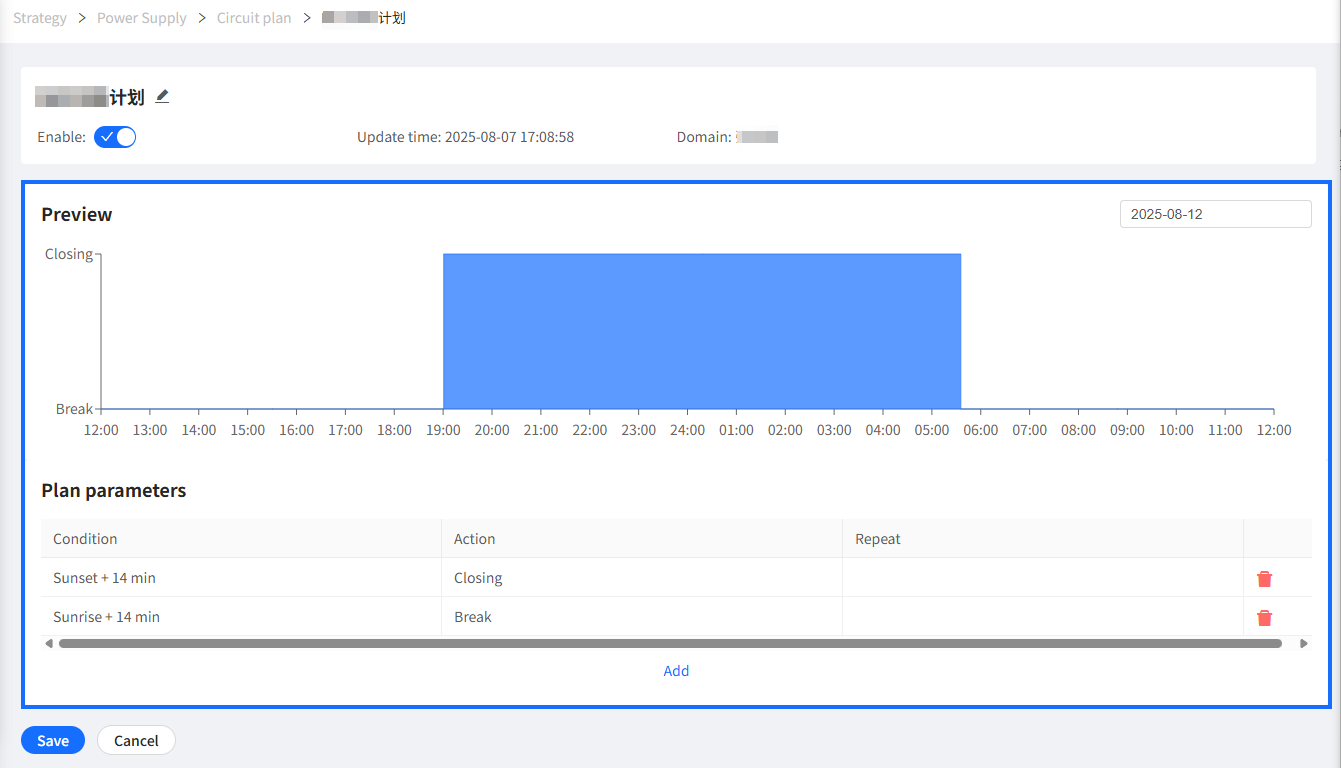

Plan Edit

Click on an existing plan item or select the add button to the right, and a parameter configuration interface will pop up on the right. Follow the page prompts to input relevant information:

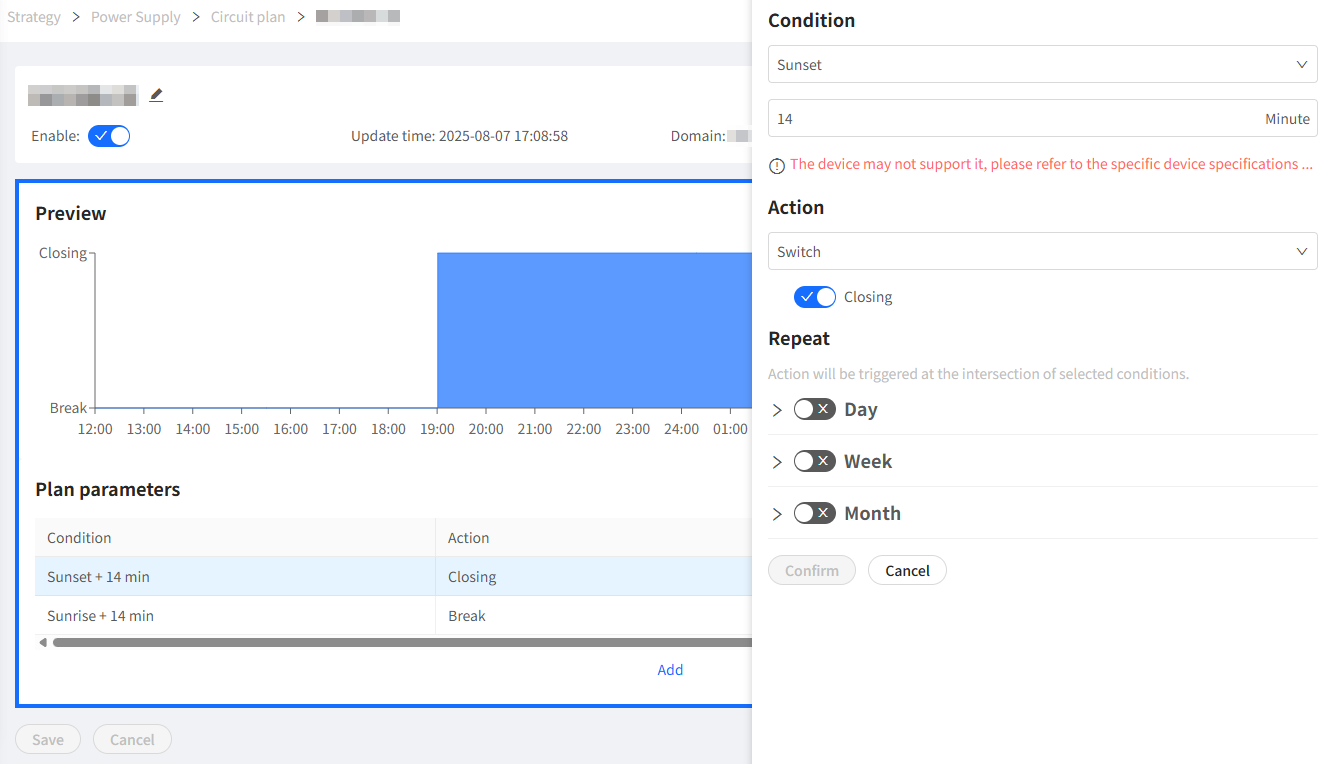

Plan Parameter

Specific parameter descriptions refer to the plan parameter area description above.

Definition
  1. All plan parameter changes need to be saved to take effect.
  2. Plan parameter changes will be immediately synchronized to related terminal control devices.
  3. When the device is offline, plan parameter changes will be synchronized to the device when it is online.

2.4 Device​

This section configures the target device collection for the current circuit plan execution. The execution device is the power supply circuit terminal.

Plan Device

2.5 Execution History​

The execution history of the current plan is displayed here, including the execution time, execution status, execution results, and other information.

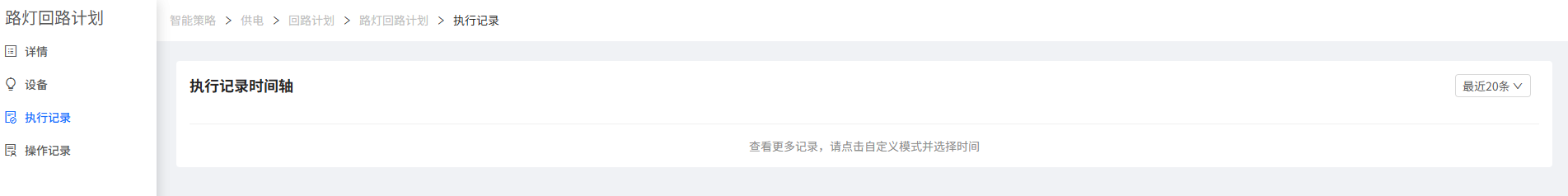

Execution History

Note

The execution record here needs the device end to support reporting, otherwise, no data will be displayed.

2.6 Operation Log​

The operation history of the current plan is displayed here, including the operator, operation time, operation content, and other information.

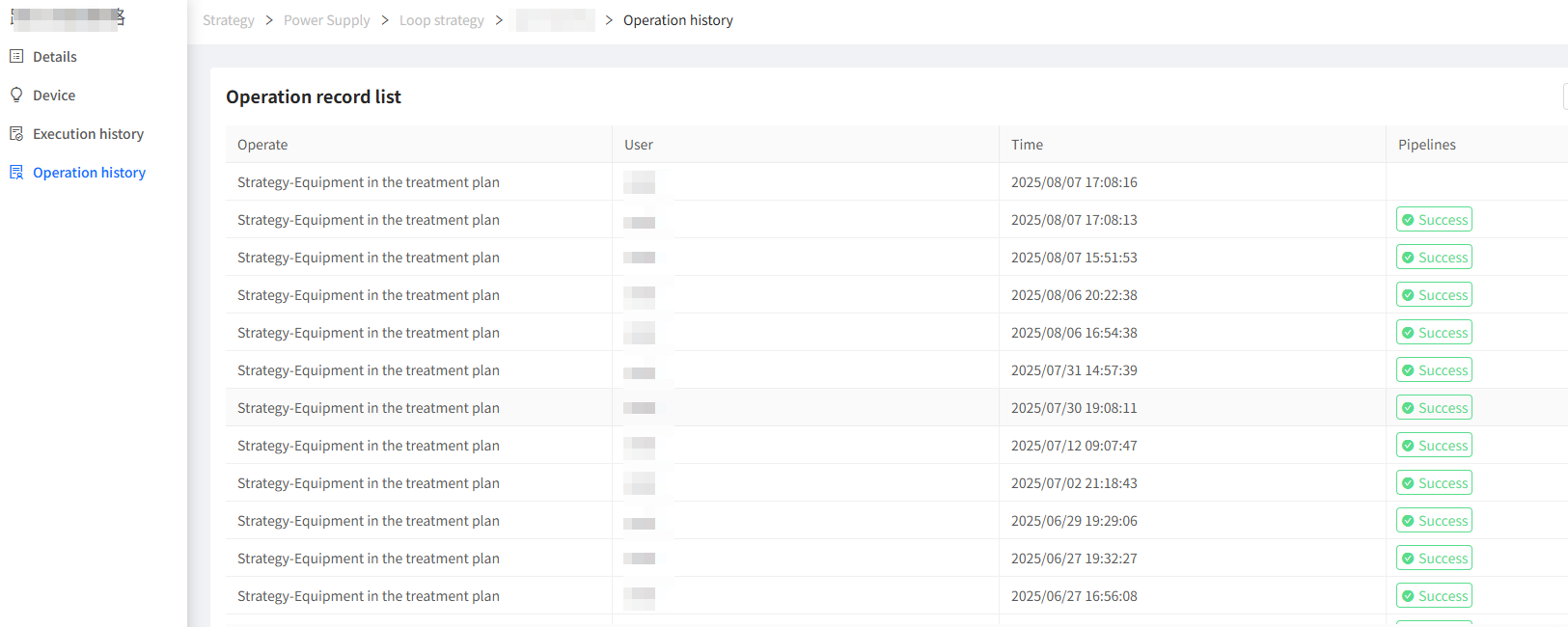

Operation History
